使用Builder设计模式，设计ToolBar
使用Builder设计模式，设计ToolBar
Builder设计模式解析
android也有不地方采用了Builder设计模式的，比如NotificationCompat.Builder和AlertDialog.Builder就采用了Builder的设计模式最典型的代码示例
NotificationCompat.Builder
NotificationCompat.Builder mBuilder = new NotificationCompat.Builder(this) .setSmallIcon(R.drawable.notification_icon) .setContentTitle("My notification") .setContentText("Hello World!");// Creates an explicit intent for an Activity in your appIntent resultIntent = new Intent(this, ResultActivity.class);
// The stack builder object will contain an artificial back stack for the// started Activity.// This ensures that navigating backward from the Activity leads out of// your application to the Home screen.TaskStackBuilder stackBuilder = TaskStackBuilder.create(this);// Adds the back stack for the Intent (but not the Intent itself)stackBuilder.addParentStack(ResultActivity.class);// Adds the Intent that starts the Activity to the top of the stackstackBuilder.addNextIntent(resultIntent);PendingIntent resultPendingIntent = stackBuilder.getPendingIntent( 0, PendingIntent.FLAG_UPDATE_CURRENT );mBuilder.setContentIntent(resultPendingIntent);NotificationManager mNotificationManager = (NotificationManager) getSystemService(Context.NOTIFICATION_SERVICE);// mId allows you to update the notification later on.mNotificationManager.notify(mId, mBuilder.build());AlertDialog.Builder
AlertDialog.Builder builder2=new AlertDialog.Builder(getActivity(),R.style.AppTheme_NoActionBar);
builder2.setTitle("警告") .setMessage("你确定删除吗") new DialogInterface.OnClickListener() { @Override public void onClick(DialogInterface dialog, int which) { ToastUtil.showToast(getActivity(),"你点击了取消"); } }) .setPositiveButton("确定", new DialogInterface.OnClickListener() { @Override public void onClick(DialogInterface dialog, int which) { ToastUtil.showToast(getActivity(), "你点击了确定"); } }) .create().show();Builder设计模式的特点
参数化
AlertDialog.Builder里面会实例一个AlertController.AlertParams，里面包含大部分，创建AlertDialog的参数，实现功能的参数化public Builder(Context context, int themeResId) {
P = new AlertController.AlertParams(new ContextThemeWrapper(context, resolveDialogTheme(context, themeResId))); }可维护性强
由于Builder设计模式的参数，达到功能的多变，可维护性就变得很强例如：可以 调用setMessage(“你确定删除吗”)，也可以去掉
ToolBar的设计，抽象化
接口抽象toolbar的规范public interface INavigation
/** * 所有Toolbar的规范 * 抽象一个Toolbar * * Created by 辉神 on 2016/8/10. */
public interface INavigation { /** * 定义布局（返回布局id） * @return */ public int bindLayoutId();
/** * 创建和绑定布局 */ public void build();}抽象并实现INavigation——public abstract class AbsNavigation
/** * 再次抽象Toolbar * -只要是app的开发，都会有布局的创建和绑定 * -再次抽象，是为了，下次使用时，不用再次创建布局和绑定 * Created by 辉神 on 2016/8/10. */
public abstract class AbsNavigation<P extends AbsNavigation.NavigationParams> implements INavigation { /** * 设置一个默认LayoutId，默认为0 */ private static final int DEFAULT_LAYOUT_ID=0; private P params; private View contentView;
public AbsNavigation(P params) { this.params = params; }
public P getParams() { return params; }
@Override public int bindLayoutId() { return DEFAULT_LAYOUT_ID; }
@Override public void build() { //创建和绑定布局 if (contentView==null) contentView = bindParent(bindLayoutId(), ((NavigationParams)getParams()).parent); }
/** * 方便子类使用 * @param id * @return */ public View findLayoutById(int id){ return contentView!=null?contentView.findViewById(id):null; } public String getString(int id){ return contentView.getContext().getResources().getString(id); }
public View bindParent(int id, ViewGroup parent) { //先要判断这个id是否为0 if (id==DEFAULT_LAYOUT_ID){ return null; } View childView = ((NavigationParams)getParams()).inflater.inflate(id, parent,false); return bindParent(childView,parent); }
public View bindParent(View childView, ViewGroup parent) { ViewGroup viewParent= (ViewGroup) childView.getParent(); //如果他原来有一个爸爸了，就先把它爸爸干掉 if(viewParent!=null){ viewParent.removeView(childView); } //添加我们的爸爸给这个视图，因为一个视图不可能有两个爸爸 parent.addView(childView,0); //将爸爸返回 return parent; }
/** * Builder设计模式，所有Toolbar都必须有的参数----------参数集（参数类） */ public static class NavigationParams{ private Context context;//上下文对象，用于加载布局视图 private ViewGroup parent;//每一个布局视图都有一个爸爸 private LayoutInflater inflater; public NavigationParams(Context context, ViewGroup parent) { this.context = context; this.parent = parent; inflater=inflater.from(context); } }
/** * 创建Toolbar */ public abstract static class Builder{ public Builder(Context context,ViewGroup parent) { }
/** * 创建Toolbar * @return */ public abstract INavigation create(); }}搭建toolbar布局框架——abstract class DefaultNavigation（多个子类（功能）继承此父类，功能需求就可以多变）
/** * 左中右场场景， * 也就是先设置左中右的布局，子类可以实现更多内容 * Created by 辉神 on 2016/8/11. */
public abstract class DefaultNavigation<P extends AbsNavigation.NavigationParams> extends AbsNavigation<P> {
public DefaultNavigation(P params) { super(params); }
@Override public int bindLayoutId() { return R.layout.navigation_default; }
@Override public void build() { super.build();//一定要super，因为要绑定左中右的父容器
//初始化父容器，布局框架 LinearLayout ll_left= (LinearLayout) findLayoutById(R.id.ll_left); LinearLayout ll_center= (LinearLayout) findLayoutById(R.id.ll_center); LinearLayout ll_right= (LinearLayout) findLayoutById(R.id.ll_right);
//以下方法都是抽象，显然，子类可以任意定义布局，达到动态改变，方便维护 //绑定布局也就是，将子布局添加到当前这个“左中右场景”中来 bindParent(bindLeftLayoutId(),ll_left); bindParent(bindCenterLayoutId(),ll_center); bindParent(bindRightLayoutId(),ll_right); //初始化子布局 initLeftLayout(ll_left); initCenterLayout(ll_center); initRightLayout(ll_right);
}
/** *返回左边布局ID—— 用于子布局（待子类实现） * @return ID */ public abstract int bindLeftLayoutId();
/** * 返回中间布局ID—— 用于子布局（待子类实现） * @return ID */ public abstract int bindCenterLayoutId();
/** * 返回右边布局ID—— 用于子布局（待子类实现） * @return ID */ public abstract int bindRightLayoutId();
/** * 初始化左边的布局—— 用于子布局（待子类实现） * @param view * @return */ public abstract void initLeftLayout(View view); /** * 初始化中间的布局—— 用于子布局（待子类实现） * @param view * @return */ public abstract void initCenterLayout(View view); /** * 初始化右边的布局—— 用于子布局（待子类实现） * @param view * @return */ public abstract void initRightLayout(View view);}主页toolbar的实现——HomeNavigation
/** * 默认的主页toolbar实现 * Created by 辉神 on 2016/8/11. */
public class HomeNavigation extends DefaultNavigation<HomeNavigation.HomeNavigationParams> {
public HomeNavigation(HomeNavigationParams params) { super(params); }
/** * 设置默认主页的参数 */ public static class HomeNavigationParams extends AbsNavigation.NavigationParams{ public int leftImageRes; public int centerTitleRes; public int rightImageRes; public int rightTextRes;
public View.OnClickListener leftOnclickListener; public View.OnClickListener rightOnClickListener;
public HomeNavigationParams(Context context, ViewGroup parent) { super(context, parent); } }
/** * 构建我们的Toolbar * @return */ public static class Builder extends AbsNavigation.Builder{ private HomeNavigationParams p;
public Builder(Context context, ViewGroup parent) { super(context, parent); this.p=new HomeNavigationParams(context,parent); } /** * 设置左边的图片 */ public Builder setLeftImageRes(int leftImageRes){ this.p.leftImageRes=leftImageRes; return this; }
/** * 设置中间标题 * @param centerTitleRes * @return */ public Builder setCenterTitleRes(int centerTitleRes){ this.p.centerTitleRes=centerTitleRes; return this; }
/** * 设置右边图片 * @param rightImageRes * @return */ public Builder setRightImageRes(int rightImageRes){ this.p.rightImageRes=rightImageRes; return this; }
/** * 设置右边文字 * @param rightTextRes * @return */ public Builder setRightTextRes(int rightTextRes){ this.p.rightTextRes=rightTextRes; return this; }
/** * 设置左边监听事件 * @param leftOnclickListener * @return */ public Builder setLeftOnclickListener(View.OnClickListener leftOnclickListener){ this.p.leftOnclickListener=leftOnclickListener; return this; }
/** * 设置右边监听事件 * @param rightOnClickListener * @return */ public Builder setRightOnClickListener(View.OnClickListener rightOnClickListener){ this.p.rightOnClickListener=rightOnClickListener; return this; }
/** * <p>这个方法被调用了之后，还没有结束，还需要调用接口中的build()方法</p> * <p>HomeNavigation的是上层父类，是INavigation的实现类，</p> * <p>所以当前INavigation的build()方法被调用时，也就相当于接口回调了，builder设计模式也就完成</p> * <p>用户还需要再调用最高层接口，已经设计好的方法build()方法</p> * <p>这个builder设计模式简直屌炸天</p> * @return */ @Override public INavigation create() { return new HomeNavigation(p); } }
@Override public int bindLayoutId() { return super.bindLayoutId(); }
@Override public int bindLeftLayoutId() { return R.layout.navigation_default_left; }
@Override public int bindCenterLayoutId() { return R.layout.navigation_default_center; }
@Override public int bindRightLayoutId() { return R.layout.navigation_home_right; }
@Override public void initLeftLayout(View view) { ImageView iv_default_left = (ImageView) view.findViewById(R.id.iv_default_left); iv_default_left.setImageResource(getParams().leftImageRes); iv_default_left.setOnClickListener(getParams().leftOnclickListener); }
@Override public void initCenterLayout(View view) { TextView tv_default_center = (TextView) view.findViewById(R.id.tv_default_center); tv_default_center.setText(getString(getParams().centerTitleRes)); }
@Override public void initRightLayout(View view) { TextView tv_home_right = (TextView) view.findViewById(R.id.tv_home_right); tv_home_right.setText(getString(getParams().rightTextRes)); tv_home_right.setOnClickListener(getParams().rightOnClickListener); ImageView iv_home_right= (ImageView) view.findViewById(R.id.iv_home_right); iv_home_right.setImageResource(getParams().rightImageRes); //启动金币动画 AnimationDrawable animationDrawable= (AnimationDrawable) iv_home_right.getBackground(); animationDrawable.start(); }}HomeNavigation的调用,即实例化
private void initNavigation(View contentView) {
HomeNavigation.Builder builder=new HomeNavigation.Builder(getActivity(), (ViewGroup) contentView);
builder.setLeftImageRes(R.mipmap.apk_all_top_nav) .setCenterTitleRes(R.string.tabbar_home_text) .setRightTextRes(R.string.nav_sign_in) .setRightImageRes(R.drawable.anim_sign_coin) .setLeftOnclickListener( new View.OnClickListener() { @Override public void onClick(View v) { ToastUtil .showToast(getActivity(), "点击了菜单"); } }) .setRightOnClickListener (new View.OnClickListener() { @Override public void onClick(View v) { ToastUtil.showToast(getActivity(), "点击了签到"); } }) .create().build();

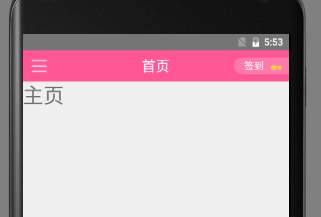

}主页toolbar实现效果
布局代码就不给了
